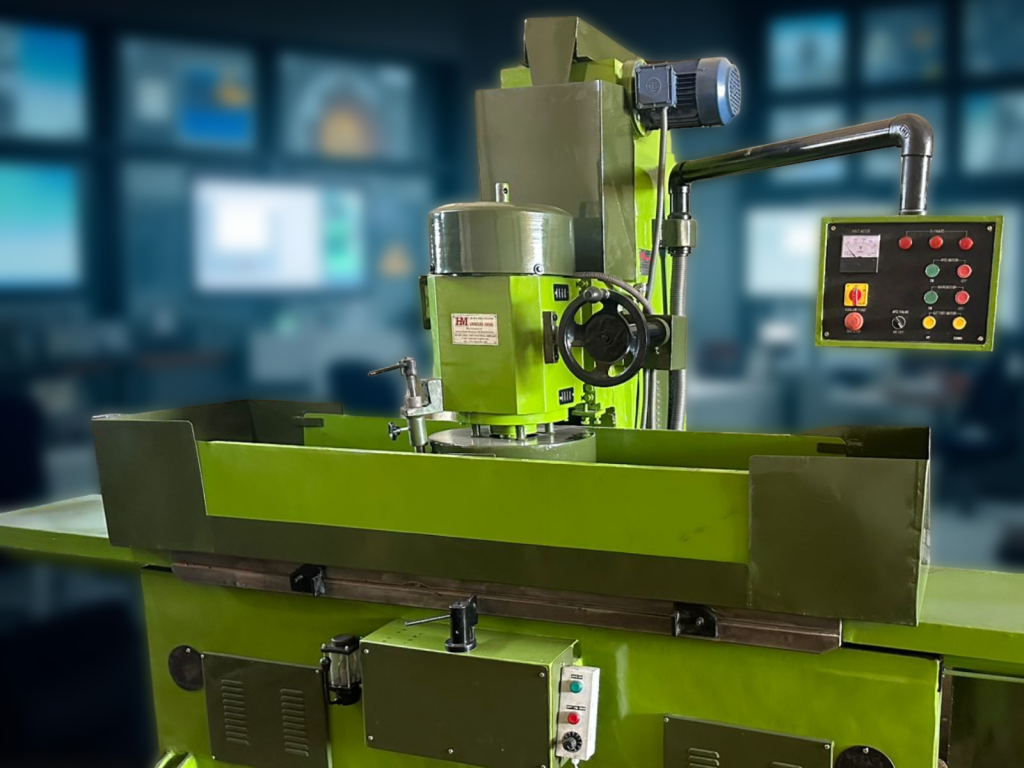

Segmental Cup Grinder Machine
The Vertical Segmental Cup Grinder Machine is designed for precision grinding of flat and irregular surfaces with high efficiency and accuracy. Featuring a vertical spindle configuration and segmental grinding cup wheel, this machine is ideal for heavy-duty applications in tool rooms, foundries, and metalworking industries. The robust construction ensures vibration-free operation and long-term durability. The vertical spindle head delivers uniform pressure and consistent material removal, making it suitable for grinding large and hard components. With easy operation, adjustable settings, and low maintenance requirements, this machine is a reliable solution for high-performance surface grinding tasks.
Features of Vertical Segmental Cup Grinder Machine
Vertical Spindle Design
Ensures consistent downward pressure for uniform grinding and excellent surface finish.
Large Work Table
Spacious and smooth-operating work table supports a wide range of job sizes and shapes.
High Grinding Accuracy
Precision slideways and spindle ensure accurate and repeatable grinding results.
Segmental Cup Wheel
Equipped with segmental abrasive wheels for effective material removal, longer tool life, and reduced heat generation.
Heavy-Duty Construction
Rigid structure made from high-grade cast iron to minimize vibrations and enhance grinding precision.
Adjustable Wheel Head
Vertical adjustment for setting the grinding depth according to job requirements.
Easy Operation & Controls
User-friendly control panel and ergonomic design allow smooth handling and quick setup.
Coolant System
Integrated coolant system minimizes thermal distortion and improves grinding quality.
Safety Features
Equipped with safety guards and overload protection for operator safety.
Low Maintenance
Designed for long-term performance with minimal maintenance requirements.
Features of Vertical Segmental Cup Grinder Machine
Standard Accessories
Optional Accessories
The machine is built of heavy-cuty high-grade cast iron. Base is built of hand scraped to achieve fine tolerance & accuracy
- Total Power: 1H.P./0.75kw
- Net Weight: 650 Kg
Standard Accessories
1. Diamond Dresser With Holder
2. Wheel Puller
3. One Grinding Wheel With Flange
4. Electric Motor With Starter
5. Magnet Chuck Lock Piece.
Optional Accessories
1. Permanent Magnec Chuck
2. Coolant System
3. Machine Lamp (230 V Ac)
4. Lubricaon Pump
5. DRO
6. Dust Collector
7. Tool Kit
8. Electric Magnetic Chuck
9. Coolant System With Magnetic
separator & paper band filter.
10. Radius & Angular Wheel Truing
attachment.
11. Vice – Plain, Sine, Swivel & Universal.
