Discover Precision with HM500x200 + 600x250mm — Manual Surface Grinding Machine Engineered by HM GRINDERS INDIA
About Grinding Machine
Manual Surface Grinding Machine Engineered
Meet the HM500x200, a robust and reliable manual surface grinding machine designed for precision, performance, and durability. Perfect for tool rooms, die shops, and precision component manufacturers, this machine is the ideal companion for achieving mirror-finish flatness and tight tolerances.
Key Highlights
Grinding Capacity
500 mm x 200 mm working table — perfect for medium-size precision jobs
Rigid Construction
Built with high-grade cast iron for vibration-free, stable operations
Manual Precision
Designed for craftsmen who value control, feel, and accuracy in every movement
Smooth Table Movement
Hand-scraped and precision-aligned for ultra-smooth operation
Long Life & Low Maintenance
Durable components and simple mechanical systems ensure longevity
Why Choose HM500x200?
Ideal for tool and die work, flat surface finishing, and small-batch machining
Reliable for daily workshop use, even in tough industrial conditions
Backed by HM GRINDERS INDIA’s trusted after-sales service and support network
Whether you’re shaping tools or finishing critical components, the HM500x200 empowers you to achieve perfection by hand.
Standard Accessories
Optional Accessories
The machine is built of heavy-cuty high-grade cast iron. Base is built of hand scraped to achieve fine tolerance & accuracy
- Total Power: 1H.P./0.75kw
- Net Weight: 650 Kg
Standard Accessories
1. Diamond Dresser With Holder
2. Wheel Puller
3. One Grinding Wheel With Flange
4. Electric Motor With Starter
5. Magnet Chuck Lock Piece.
Optional Accessories
1. Permanent Magnec Chuck
2. Coolant System
3. Machine Lamp (230 V Ac)
4. Lubricaon Pump
5. DRO
6. Dust Collector
7. Tool Kit
8. Electric Magnetic Chuck
9. Coolant System With Magnetic
separator & paper band filter.
10. Radius & Angular Wheel Truing
attachment.
11. Vice – Plain, Sine, Swivel & Universal.

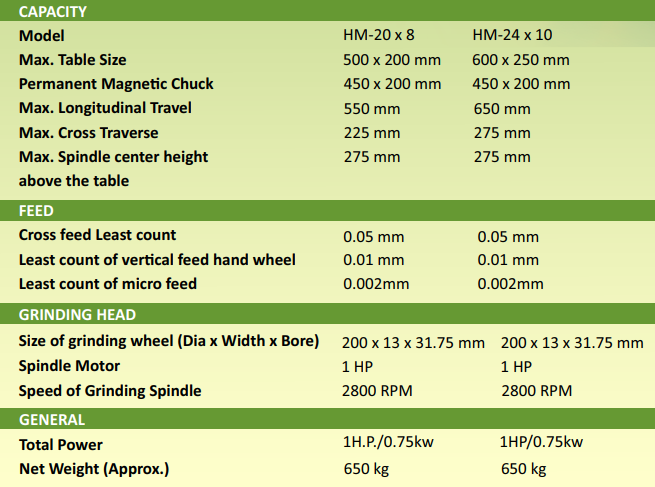

SPECIFICATIONS
CAPACITY
| SPECIFICATIONS | HM-20 x 8 | HM-24 x 10 |
|---|---|---|
| Model | HM-20 x 8 | HM-24 x 10 |
| Max. Table Size | 500 x 200 mm | 600 x 250 mm |
| Permanent Magnetic Chuck | 450 x 200 mm | 450 x 200 mm |
| Max. Longitudinal Travel | 550 mm | 650 mm |
| Max. Cross Traverse | 225 mm | 275 mm |
| Max. Spindle Center Height | 275 mm | 275 mm |
FEED
| Parameter | HM-20 x 8 | HM-24 x 10 |
|---|---|---|
| Cross Feed Least Count | 0.05 mm | 0.05 mm |
| Vertical Feed Hand Wheel Least Count | 0.01 mm | 0.01 mm |
| Micro Feed Least Count | 0.002 mm | 0.002 mm |
GRINDING HEAD
| Parameter | HM-20 x 8 | HM-24 x 10 |
|---|---|---|
| Grinding Wheel Size (Dia x W x Bore) | 200 x 13 x 31.75 mm | 200 x 13 x 31.75 mm |
| Spindle Motor | 1 HP | 1 HP |
| Grinding Spindle Speed | 2800 RPM | 2800 RPM |
GENERAL
| Parameter | HM-20 x 8 | HM-24 x 10 |
|---|---|---|
| Total Power | 1 HP / 0.75 kW | 1 HP / 0.75 kW |
| Net Weight (Approx.) | 650 kg | 650 kg |
CAPACITY
| SPECIFICATIONS | HM-20 x 8 | HM-24 x 10 |
|---|---|---|
| Model | HM-20 x 8 | HM-24 x 10 |
| Max. Table Size | 500 x 200 mm | 600 x 250 mm |
| Permanent Magnetic Chuck | 450 x 200 mm | 450 x 200 mm |
| Max. Longitudinal Travel | 550 mm | 650 mm |
| Max. Cross Traverse | 225 mm | 275 mm |
| Max. Spindle Center Height | 275 mm | 275 mm |
FEED
| Parameter | HM-20 x 8 | HM-24 x 10 |
|---|---|---|
| Cross Feed Least Count | 0.05 mm | 0.05 mm |
| Vertical Feed Hand Wheel Least Count | 0.01 mm | 0.01 mm |
| Micro Feed Least Count | 0.002 mm | 0.002 mm |
GRINDING HEAD
| Parameter | HM-20 x 8 | HM-24 x 10 |
|---|---|---|
| Grinding Wheel Size (Dia x W x Bore) | 200 x 13 x 31.75 mm | 200 x 13 x 31.75 mm |
| Spindle Motor | 1 HP | 1 HP |
| Grinding Spindle Speed | 2800 RPM | 2800 RPM |
GENERAL
| Parameter | HM-20 x 8 | HM-24 x 10 |
|---|---|---|
| Total Power | 1 HP / 0.75 kW | 1 HP / 0.75 kW |
| Net Weight (Approx.) | 650 kg | 650 kg |
