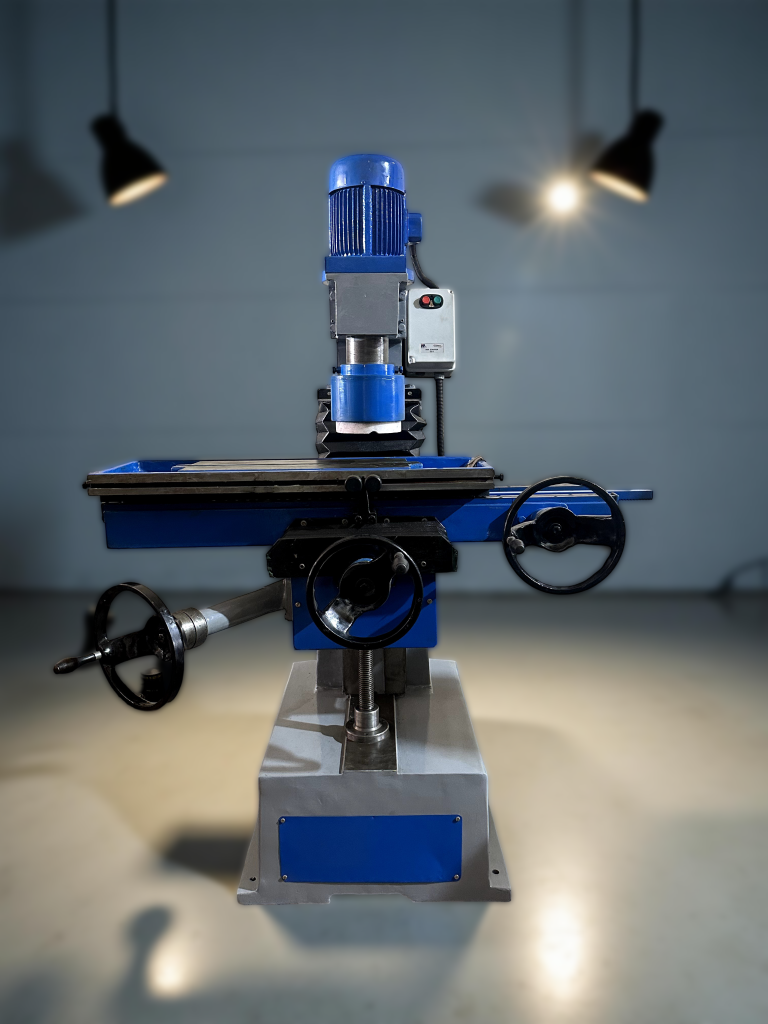

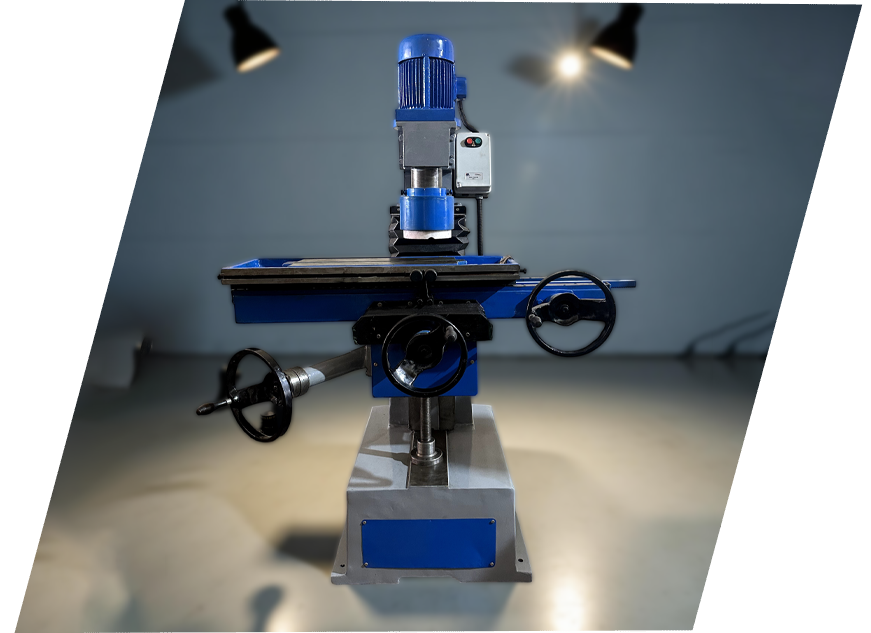

Manual Cup Grinder Machine – HM Grinders Machines
Precision. Durability. Performance.
The Manual Cup Grinder Machine by HM Grinders Machines is engineered for high-accuracy grinding applications, offering unmatched precision for tool rooms, workshops, and manufacturing units. Designed with robust construction and smooth manual operation, this grinder ensures consistent performance for surface and cup grinding jobs.
Key Features
Heavy-Duty Cast Iron Body – Ensures vibration-free operation and long-term durability.
Manual Feed Mechanism – Offers full control for intricate and delicate grinding processes.
Segmental Grinding Wheel Head – Optimized for uniform surface grinding and excellent finish.
Rigid Column Structure – Provides maximum stability for accurate grinding results.
Hand Scraped Guideways – Enhances machine accuracy and smooth sliding movement.
Compact Design – Ideal for small-scale units, tool rooms and precision workshops.
Low Maintenance – Built with quality components to reduce wear and simplify upkeep.
Applications
Precision surface grinding
Mould and die polishing
Tool and cutter sharpening
Maintenance work in machine shops
Small component finishing
Standard Accessories
Optional Accessories
The machine is built of heavy-cuty high-grade cast iron. Base is built of hand scraped to achieve fine tolerance & accuracy
- Total Power: 1H.P./0.75kw
- Net Weight: 650 Kg
Standard Accessories
1. Diamond Dresser With Holder
2. Wheel Puller
3. One Grinding Wheel With Flange
4. Electric Motor With Starter
5. Magnet Chuck Lock Piece.
Optional Accessories
1. Permanent Magnec Chuck
2. Coolant System
3. Machine Lamp (230 V Ac)
4. Lubricaon Pump
5. DRO
6. Dust Collector
7. Tool Kit
8. Electric Magnetic Chuck
9. Coolant System With Magnetic
separator & paper band filter.
10. Radius & Angular Wheel Truing
attachment.
11. Vice – Plain, Sine, Swivel & Universal.
