About Grinding Machine

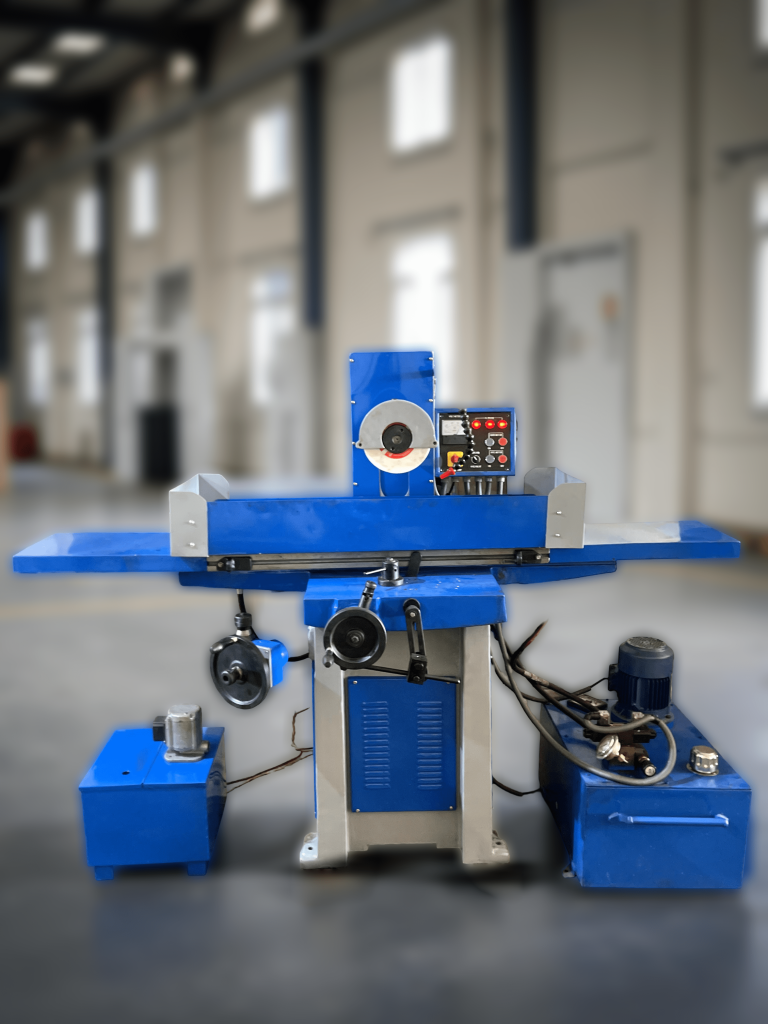

Hydraulic Surface Grinding Machine – HM500x200H
- Precision
- Performance
- Productivity
The HM500x200H is a robust and high-performance hydraulic surface grinding machine designed for precision flat surface grinding. Engineered by HM GRINDERS (INDIA) with decades of expertise, this model is ideal for tool rooms, maintenance shops, and production departments that demand superior finish, accuracy and reliability.
Structure
Made from heavy-duty, high-grade cast iron
Hand-scraped base for high accuracy and fine tolerance
Reciprocating table with V & Flat guideways for smooth movement
Why Choose HM500x200H?
- Reliable Hydraulic Performance
- Precision Machining Tolerance
- User-Friendly Controls
- Low Maintenance Design
- Backed by HM GRINDERS’ Trusted After-Sales Support
Applications
Precision flat grinding
Tool & die work
Mold bases
Automotive parts
General fabrication components
Standard Accessories
Optional Accessories
The machine is built of heavy-cuty high-grade cast iron. Base is built of hand scraped to achieve fine tolerance & accuracy
- Total Power: 1H.P./0.75kw
- Net Weight: 650 Kg
Standard Accessories
1. Diamond Dresser With Holder
2. Wheel Puller
3. One Grinding Wheel With Flange
4. Electric Motor With Starter
5. Magnet Chuck Lock Piece.
Optional Accessories
1. Permanent Magnec Chuck
2. Coolant System
3. Machine Lamp (230 V Ac)
4. Lubricaon Pump
5. DRO
6. Dust Collector
7. Tool Kit
8. Electric Magnetic Chuck
9. Coolant System With Magnetic
separator & paper band filter.
10. Radius & Angular Wheel Truing
attachment.
11. Vice – Plain, Sine, Swivel & Universal.

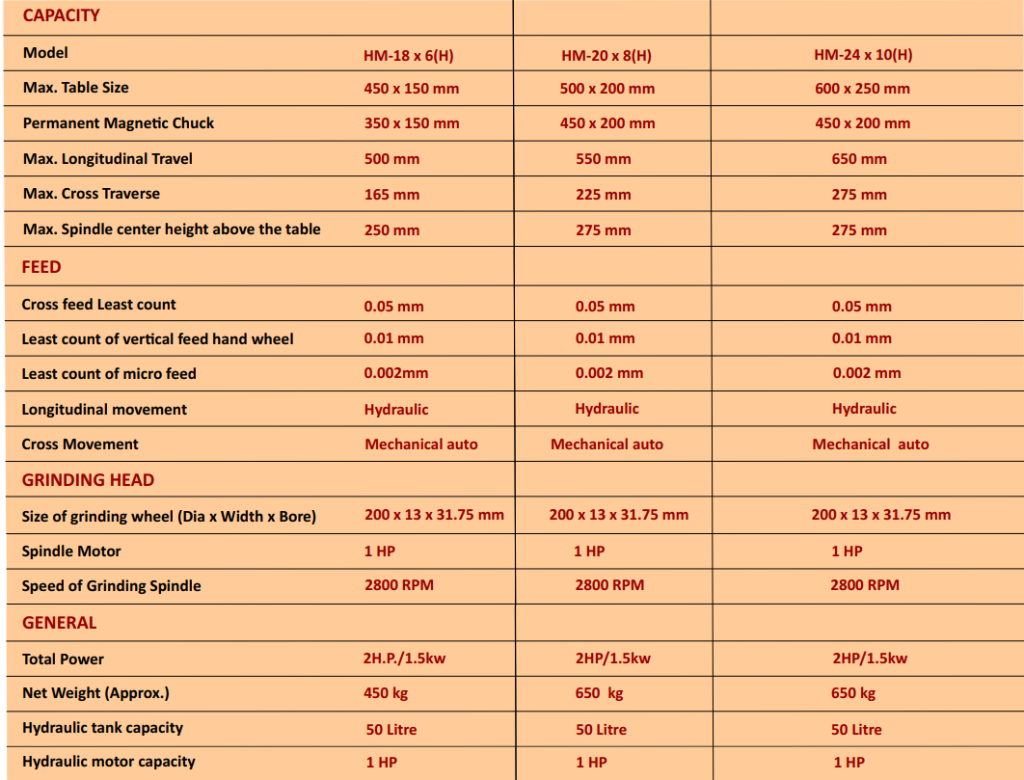

SPECIFICATIONS
