About Grinding Machine
Ball Type Manual Surface Grinding Machine – Model: HM600x300
The HM600x300 is a robust and precision-engineered Ball Type Manual Surface Grinding Machine, designed for high-performance grinding with consistent accuracy and durability. Built to withstand heavy-duty applications, this model is ideal for tool rooms, machine shops, and engineering workshops.
With a grinding spindle speed of 2800 RPM and a sturdy build weighing approximately 1250 kg, this machine delivers consistent results in tool rooms, maintenance workshops, and production units. Its ergonomic design allows for fine control, making it ideal for flat surface grinding, tool sharpening, and precision engineering tasks.
Key Specifications
Model: HM600x300
Table Size: 600mm x 300mm
Grinding Wheel Speed: 2800 RPM
Machine Weight: Approx. 1250 kg
Spindle Type: Precision ball-type spindle for smooth operation
Manual Operation: Ensures operator control and fine adjustment for precision jobs
Table Movement: Supported by high-quality bearings for easy and accurate movement
Structure: Heavy-duty casting with vibration-free performance and high rigidity
Features & Benefits
High-Speed Spindle (2800 RPM): Ensures fast and efficient grinding results.
Ball Bearing Movement: Enhances durability and smooth operation of table movement.
Compact & Sturdy Build: Weighing 1250 kg, the machine delivers excellent stability during operations.
Precision Ground Components: Guarantees consistent surface finish and dimensional accuracy.
User-Friendly Design: Ideal for both skilled technicians and operators seeking manual control with high accuracy.
The HM600x300 is the perfect solution for precision surface grinding where reliability, stability, and smooth operation are critical. Whether for dies, jigs, fixtures, or general flat surface grinding, this machine provides dependable performance at every level
Standard Accessories
Optional Accessories
The machine is built of heavy-cuty high-grade cast iron. Base is built of hand scraped to achieve fine tolerance & accuracy
- Total Power: 1H.P./0.75kw
- Net Weight: 650 Kg
Standard Accessories
1. Diamond Dresser With Holder
2. Wheel Puller
3. One Grinding Wheel With Flange
4. Electric Motor With Starter
5. Magnet Chuck Lock Piece.
Optional Accessories
1. Permanent Magnec Chuck
2. Coolant System
3. Machine Lamp (230 V Ac)
4. Lubricaon Pump
5. DRO
6. Dust Collector
7. Tool Kit
8. Electric Magnetic Chuck
9. Coolant System With Magnetic
separator & paper band filter.
10. Radius & Angular Wheel Truing
attachment.
11. Vice – Plain, Sine, Swivel & Universal.

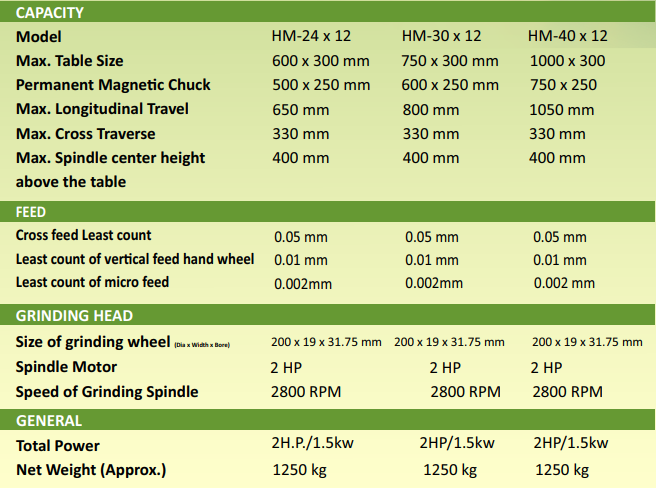

SPECIFICATIONS
CAPACITY
| Specification | HM-24 x 12 | HM-30 x 12 | HM-40 x 12 |
|---|---|---|---|
| Max. Table Size | 600 x 300 mm | 750 x 300 mm | 1000 x 300 mm |
| Permanent Magnetic Chuck | 500 x 250 mm | 600 x 250 mm | 750 x 250 mm |
| Max. Longitudinal Travel | 650 mm | 800 mm | 1050 mm |
| Max. Cross Traverse | 330 mm | 330 mm | 330 mm |
| Max. Spindle Center Height | 400 mm | 400 mm | 400 mm |
FEED
| Specification | All Models |
|---|---|
| Cross Feed Least Count | 0.05 mm |
| Least Count of Vertical Feed Hand Wheel | 0.01 mm |
| Least Count of Micro Feed | 0.002 mm |
GRINDING HEAD
| Specification | All Models |
|---|---|
| Size of Grinding Wheel | 200 x 19 x 31.75 mm |
| Spindle Motor | 2 HP |
| Speed of Grinding Spindle | 2800 RPM |
GENERAL
| Specification | All Models |
|---|---|
| Total Power | 2 H.P./1.5 kW |
| Net Weight (Approx.) | 1250 kg |
